1. Durable
▶ Using only the best and selection materials, KIATMAS FRP storage and processing tank is quaranty to provide both strong protection and high durability over time. KIATMAS FRP storage and processing tank can solve every storage common problem for any
industry.
▶ KIATMAS FRP storage and processing tank is the best choice in the market for every storage requirement.
▶ Filament winding process machine, this process produces low cost, high strength, because it combines the ingredients at a minimum material and labor cost
2. Strong
▶ The KIATMAS FRP Abadi Fabrication and Manufacturing, is able to solve common problem in design filament storage tank. Developed by professional engineer.

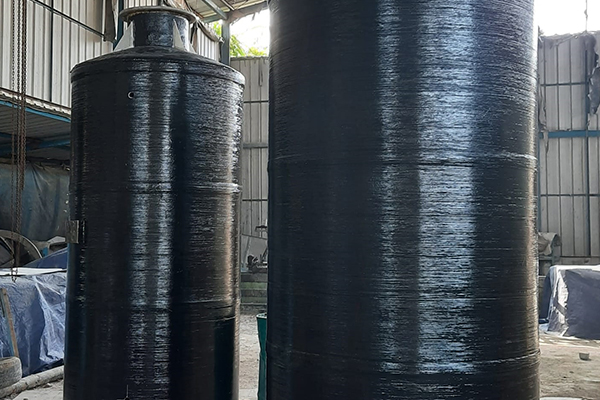

▶ Kiatmas FRP Tank are made by HELICAL WINDING . In the process, continuous strand glass or roving is the pulled through guides, impregnated with resin and guided onto rotating mandrel in a specific helical and hoop patern.
▶ The winding angel of the fiber and wall thickness are significant to the strength of the completed tank.
3. Lot Advanteges will be got
KIATMAS FRP Tank system process can provide :
- Excellent corrosion resistance (interior and exterior) to wide a range of chemicals environments.
- A combination of mechanical and physical properties that over many advantages over
traditional tank systems. - Low thermal conductivity properties requiring little or no insulation.
- Heat and cold resistance.
- Good surface
- Maintenance free.
- Light weigth
- Easy to install
- Good mechanical properties
- Flexibility in design
- Available to on site fabrication to solve transportation problem.
- Good shape stability etc
General
▶ The following Kiatmas parameters are common to all FRP tank, vessel and equipment.
- The heads of frp tank and vessels shall be
fabri-cated by contact molded laminates. - The cylindrical shells of tank and vessel shall be fabricated by filament winding technique.
- Contact molded or filament wound laminate
thicknesses are calculated for internal loadings and external loadings. - The laminates shall be selected, does not produce stresses or strains
MANUFACTURING METHODE :
- Kiatmas pressure pipe and duct system are
manufac-tured by precise filament winding system. - Flange and fittings (tee, elbow and reducer)
are manufactured by contact moldied system.
PIPE, FITTINGS & DUCT SYSTEM
Our Kiatmas piping system, by preventing the
concentration of stresses, eliminates the potential of mechanical dam-age due to expansion differential.
APPLICATION :
▶ Citra Inti Semesta Abadi is a diversified custom fabricator of corrosion resistant process piping, fittings and ducting and specializes in severe chemical services which require that our
system be specific to each application .
▶With the best Quality of material, design and
technologie fiberglass, We can offer the FRP design pipe,fittings and ducting system with many various designapplication, as follows :
- Smooth inner. ( seamless interiors of FRP piping system resist sludge and mineral deposit build up minimizing pumping cost and maintenance. A Williams and Hazen C factor of 150 is used for ‘Garuda’ frp piping )
- Design pressure up to 25 bar
- Can be used in full vacuum.
- Above ground and underground application.
- Design temperature up to 120 degree celcius.
- Light up to excellent corrosion resistance application.
- Fire retardant application
- Dualaminate ( thermoplastic liner lined FRP )
- High strength and light weight.
